Expert Breakdown: Waydoo Flyer EVO Battery and Charging Systems

Waydoo Flyer EVO Battery Options & Real-World Range

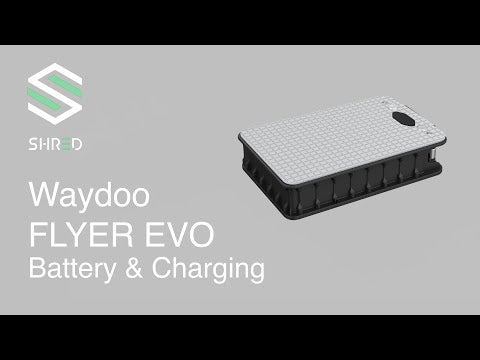

The core of the Waydoo Flyer EVO drive system lies in its redesigned lithium-ion battery architecture. Waydoo offers two distinct power capacities to balance overall board weight against ride duration:

• 2300Wh High-Capacity Battery: The primary power plant engineered for maximum endurance. In real-world testing with a 200 lb rider operating under efficient cruising conditions, this pack consistently delivers over 2 hours of continuous flight time.
• 1800Wh Standard Battery: A lower-capacity option designed to minimize overall swing weight, ideal for lighter riders or shorter, more dynamic sessions.

Beyond energy delivery, the EVO battery plays a key structural role. Once secured into the hull, its housing acts as an integral part of the standing deck, maximizing chassis rigidity and power transfer directly down to the mast and propulsion unit.

Charger Architecture & Integrated Off-Grid Power Inverter

Waydoo offers two specialized charging solutions for the Flyer EVO system, significantly improving both bench-charging speeds and field utility:

• Standard Charger: Brings the 2300Wh pack from empty to full in approximately 3 hours.
• Fast Charger: Reduces charge time by roughly 50%, reaching a complete charge on the 2300Wh pack in 1.5 to 2 hours.

Off-Grid Power Inverter Utility: The Fast Charger doubles as an off-grid energy hub. Supplied standard with the Fast Charger unit is an integrated power inverter module and a multi-outlet power strip. By disconnecting the charger from wall power and attaching the inverter interface directly to the battery, riders can use the 2300Wh EVO battery as a portable power station for camping, running tools, or charging electronics in remote locations.

Upgraded Charging Hardware & Physical Connection Sensors

The Flyer EVO charging system introduces hardware revisions that streamline power delivery and enhance safety during maintenance:

• Integrated Cable Activation Button: Previous generations (such as the Waydoo Flyer ONE and Flyer ONE+) required users to manually tap the battery casing to initiate the charge cycle. The EVO charger features an integrated button built directly into the charging harness. Pressing this button activates the charge cycle, confirmed by a solid blue LED status indicator on the housing.
• Heavy-Duty Terminals & Connection Sensors: The physical connector pins are significantly larger to handle high current loads with lower resistance. Integrated physical seating sensors communicate with the charger to ensure the plug is fully mated and locked before energizing the circuit, eliminating spark risks or improper terminal seating.

On-Battery Full-Color LCD Telemetry

To provide actionable data without relying on secondary apps, the Waydoo Flyer EVO replaces legacy LED dot indicators with an integrated, full-color LCD screen on the battery housing:

• Precise Charge Readouts: Displays true integer percentage levels (e.g., exact remaining charge) rather than broad 25% incremental estimates.
• Diagnostic Diagnostics & Fault Codes: The interface mirrors the telemetry on the wireless handheld controller. It displays real-time charging status, operational modes, and explicit system error codes for instant on-beach troubleshooting.
• Magnetically Actuated Interface: Utilizing sealed magnetic trigger points, riders can wake the screen and cycle status readouts using a magnet trigger without breaking the IP-rated hermetic seal of the battery housing.

Triple-Point Structural Latching System

To eliminate battery movement under high dynamic load, the Flyer EVO utilizes a heavy-duty three-point structural retention mechanism:

• Dual Quarter-Turn Locks: The top interface features two push-down, quarter-turn locking latches. These are operated using the integrated titanium key stored on the board, or a standard flathead screwdriver.
• Bottom Retention Anchor: A heavy-duty alignment lug secures the base of the battery into the lower receiver channel of the board cavity.

This three-point lock configuration clamps the battery down tightly, preventing flex, protecting internal electrical contacts from vibration wear, and establishing a solid platform underfoot.
