Waydoo Foilboost

Waydoo Foilboost

Waydoo

$2,980.00
$3,480.00 $2,980.00
Sale Sold out
Shipping calculated at checkout.

Backorder Item

This item is on backorder and can still be purchased, but it won't ship until we get more in stock.
View full details

The Waydoo FoilBoost Assist Kit is a game-changing, lightweight electric power assist designed to give foilers a whole new way to ride. Engineered to clamp onto almost any hydrofoil mast, FoilBoost provides that crucial extra push needed to get up on the foil quickly and ride waves longer—without needing paddles, jet skis, or tows.

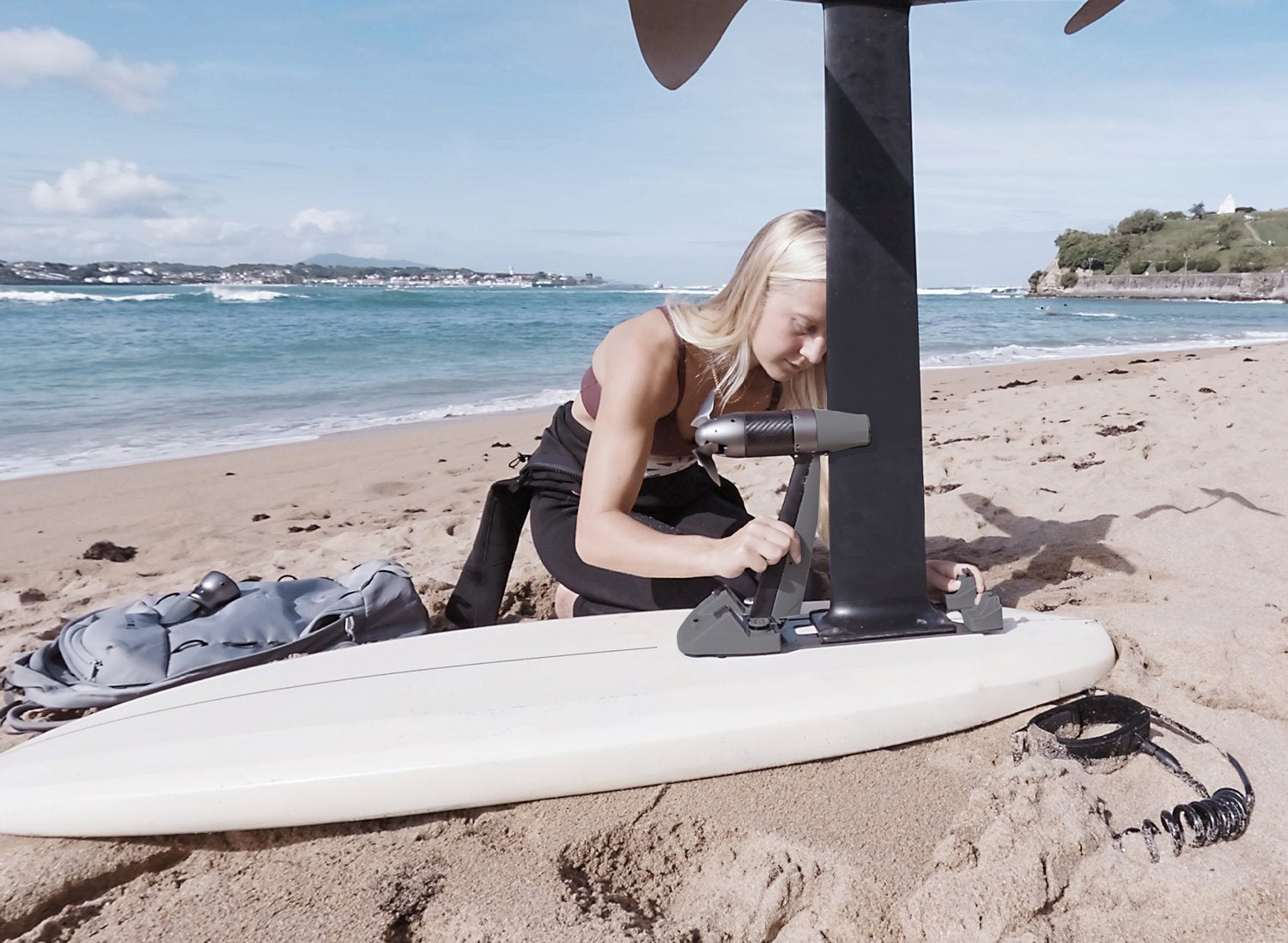

Mounting FoilBoost assist kit onto efoil mast
// MODULAR INTEGRATION

Universal 98%+ Mast Fitting

Equipped with a highly adjustable, high-tensile clamp mechanism, the FoilBoost kit integrates seamlessly with over 98% of hydrofoil masts on the market. Whether you ride carbon or alloy, standard or high-aspect, FoilBoost locks firmly without slipping.

UNIVERSAL
// BRACKET_CLAMP
3D ADJUSTABLE
// DEPTH_ALIGNMENT
FOILBOOST TECH BLUEPRINT
2700W
// MAX_MOTOR_OUTPUT
33 KG
// PEAK_THRUST_FORCE
432 WH
// TOTAL_BATTERY_CAP
3-SPEED
// WIRELESS_REMOTE
Foil Assist Capabilities
THRUST CAPACITY 33KG PEAK THRUST
FAST TAKEOFF SPEED TAKEOFF ASSIST
MAST ADAPTATION 98%+ COMPATIBLE

2-Way Mounting: Pull & Push Versatility

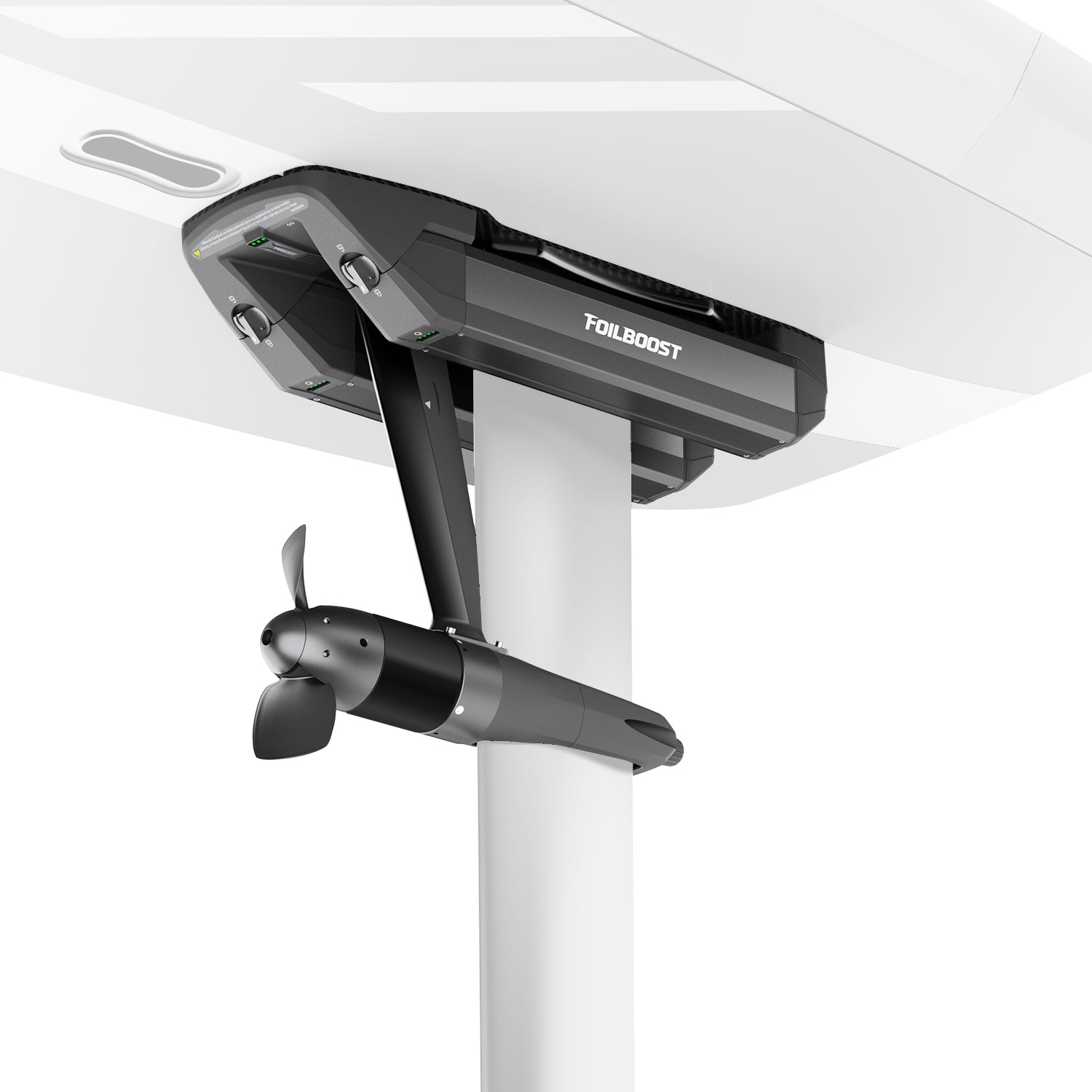

Front-Drive Pull Setup
// SETUP MODE 01: FRONT-DRIVE PULL

The Unique Front-Drive System

Positions the propulsion unit facing forward on the mast to pull the board. This innovative layout significantly reduces water turbulence passing over the hydrofoil wings, providing smoother lift, higher efficiency, and an incredibly stable, self-balancing takeoff ride that is perfect for beginners.

  • Reduces wing water turbulence
  • Enhanced self-balancing takeoff physics
  • Highly recommended for learning & schools

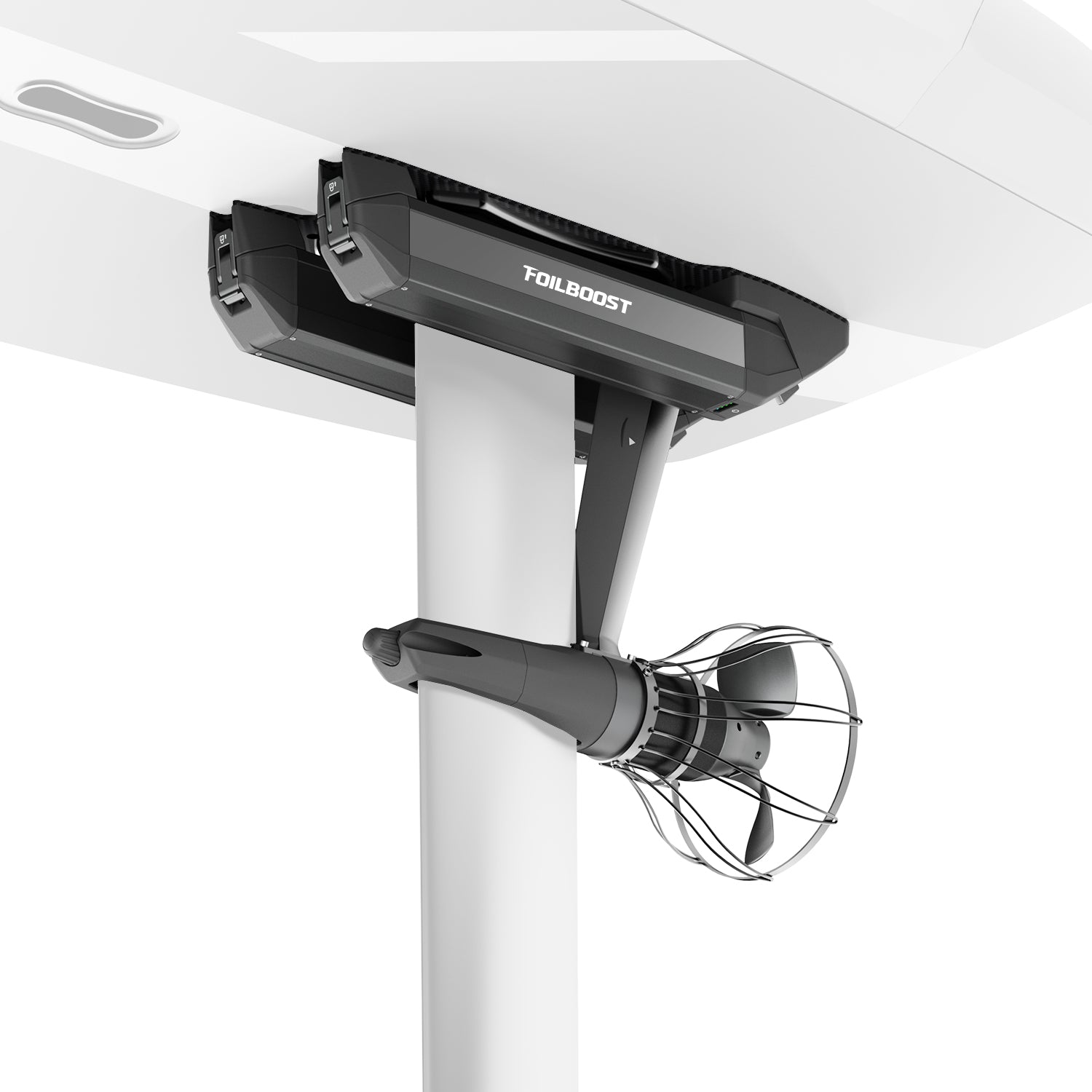

Rear-Drive Push Setup
// SETUP MODE 02: REAR-DRIVE PUSH

Standard Rear-Push System

Positions the propulsion unit facing backward on the mast, pushing the board forward. This layout offers the classic hydrofoil feel, delivering maximum carving agility, tight bank angles, and immediate responsive acceleration to pump through flat sections and connect endless swells.

  • Traditional high-agility carving response
  • Supports tight banking angles & wave pumping
  • Perfect for intermediate and advanced riders

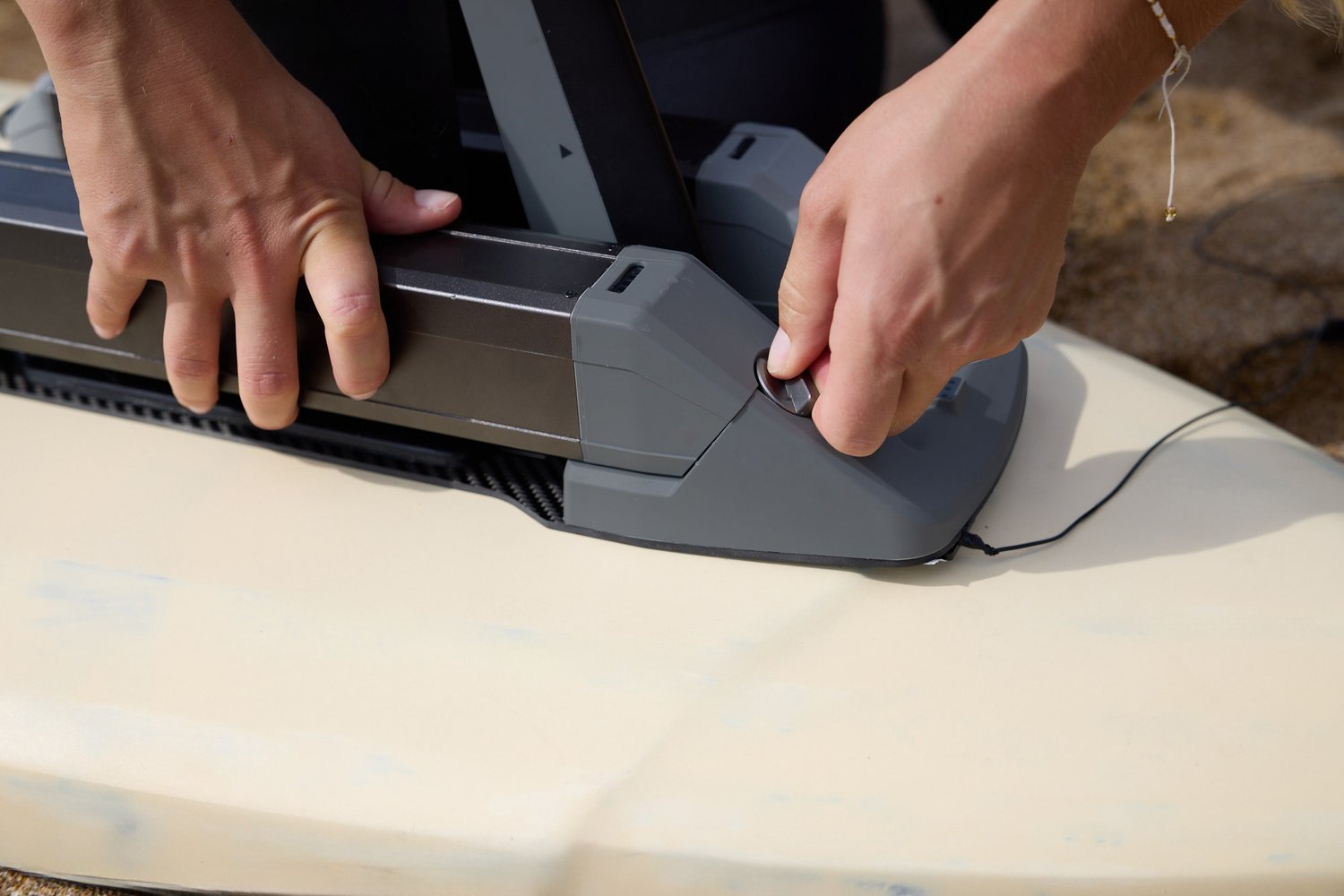

Twist-N-Lock Battery locking mechanism
// MODULAR ENERGY MODULE

432Wh Twist-N-Lock Batteries

FoilBoost utilizes a modular battery configuration composed of two 216Wh battery cells (totaling 432Wh capacity). The waydoo-exclusive Twist-N-Lock dual locking system utilizes a primary clip-on latch paired with a rotary compression knob featuring visual padlock indicators to guarantee a 100% watertight power seal.

Smart Charging Hub: Parallel fast-charger charges both batteries simultaneously in around 150 minutes.

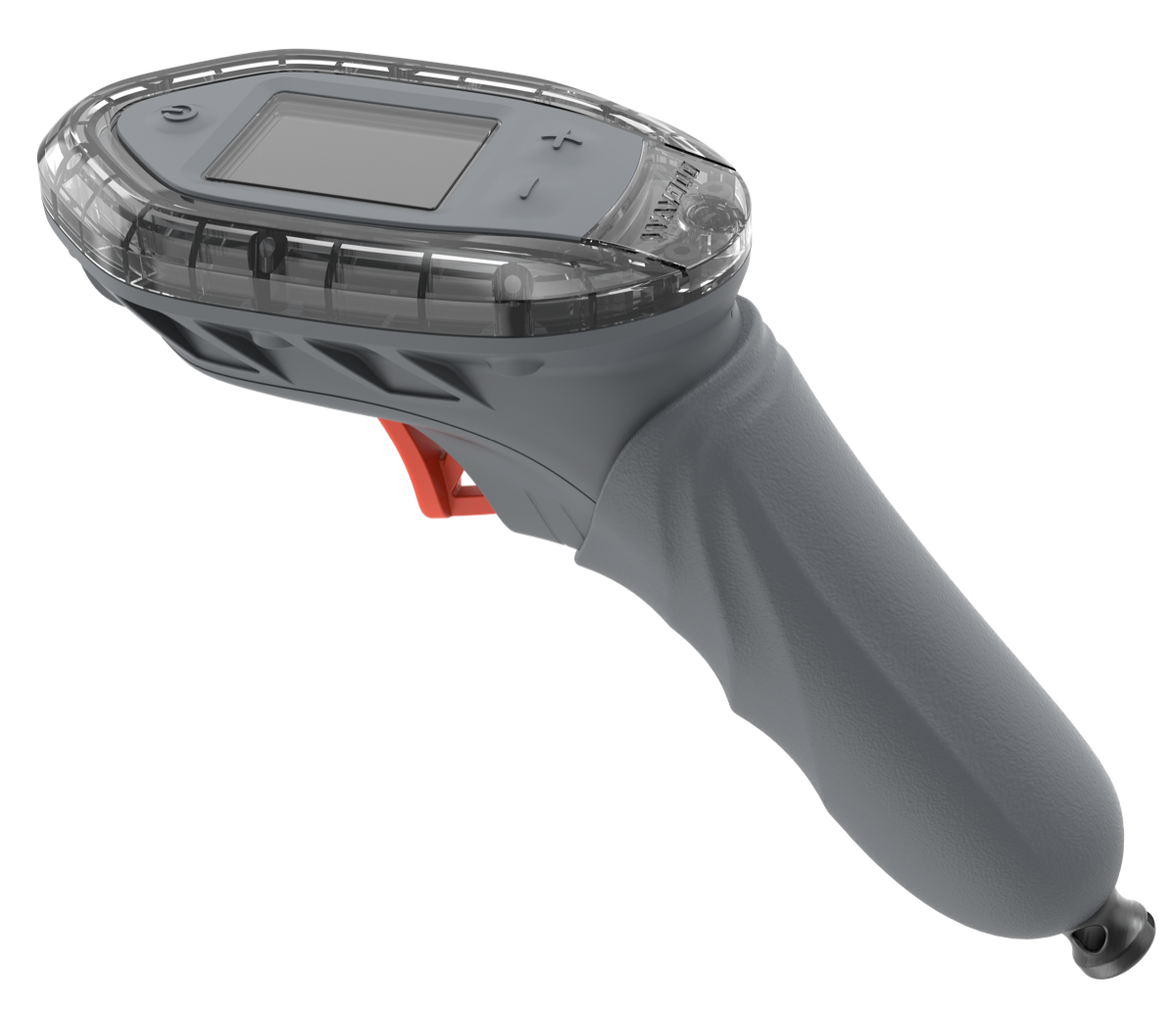

Smart Remote and Antenna setup
// COMMUNICATION & CONTROL

Extended Antenna & Smart Remote

Eliminating signal blockages caused by carbon fiber boards or seawater shielding, FoilBoost mounts an extended receiver antenna routed safely to the front nose of your board. Control is driven by an ergonomic wireless remote featuring a full-color LCD dashboard and 3-speed gear adjustments.

Signal Alert: Make sure the receiver antenna is not fully immersed in water to prevent remote connection drops.

Product Details

// PROPULSION METRICS

Dynamic Power

Max Motor Output 2700W
Peak Thrust Force 33 KG (72.8 lbs)
// POWER SOURCE

Lithium-ion Power

Total Capacity 432Wh (216Wh x 2)
Enclosure Seal IP67 Twist-N-Lock
// INTEGRATION

Structural Specs

Total Weight 5.6 kg (12.3 lbs)
Mast Compatibility 98%+ (96 - 144mm chord)

UNIVERSAL HYDROFOIL POWER ASSIST

Pre-Order Now for Mid June Shipping!

The Waydoo FoilBoost is a modular, high-performance electric propulsion assist kit designed to elevate your hydrofoil riding experience. Engineered with carbon fiber components and a lightweight frame, the system adds just 5.6 kg to your setup while packing a massive 2700W of power. It provides the crucial takeoff push required to fly above the water smoothly, making it ideal for light-wind winging, downwinders, and flat-water pumping.

With its highly modular, 3D-adjustable mast bracket, the FoilBoost clamps securely onto carbon or aluminum masts from almost any brand, ensuring a universal fit. The double-phase Twist-N-Lock battery enclosure holds two 216Wh battery cells, providing stable energy that charges in parallel in about 150 minutes. The system also features a smart Bluetooth remote control with a full-color LCD dashboard and 3 gear speeds for intuitive, responsive handling.

TECHNICAL SPECIFICATIONS

Specification Details
Max Motor Output 2700W Brushless Motor
Peak Thrust Force 33 KG (72.8 lbs)
Battery Capacity 432Wh Total (Dual 216Wh Lithium-ion Batteries)
Charger Rating 55V / 10A Fast Charger (charges dual batteries in ~150 mins)
Weight 5.6 kg (12.3 lbs) including both battery packs
Mast Chord Compatibility 96mm ~ 144mm chord length (Standard M5x25 / Extended M5x45 bolts)
Waterproof Rating IP67 Waterproof Enclosure
Wireless Remote Control 3-Speed Gear (Energy-Saving, Normal, Super), Full-Color LCD Dashboard
Remote Charger 5V / 2A Magnetic Cable (approx. 2 hours charging time)
App Connectivity Wi-Fi Hotspot: FP10_CONTROLER-XXXX (Default Password: 12345678, IP: 192.168.4.2)
Extended Antenna Nose-routing antenna prevents signal drops and carbon fiber blockages
Safety Feature Waydoo-Exclusive high-rigidity Propeller Shroud/Guard

HELPFUL INFORMATION & FAQs

What mast profiles are compatible with the Waydoo FoilBoost?
The FoilBoost is engineered with an adjustable 3D clamp that fits over 98% of hydrofoil masts on the market. It accommodates chord lengths from 96mm to 144mm. It includes Standard M5x25 and Extended M5x45 bolts, as well as combinations of standard and extended front/rear pads to adjust the clamp size to your mast profile without scratching the surface.
What is the difference between Front-Pull and Rear-Push mounting modes?
FoilBoost features a modular 2-Way Mounting design. The Front-Pull (Front-Drive) configuration places the motor unit facing forward, pulling the board. This reduces water turbulence passing over your hydrofoil wings, generating a smoother and self-balancing lift—perfect for beginners and riding schools. The Rear-Push mode places the propeller facing backward, delivering the classic high-agility carving response that advanced riders prefer for tight carving angles.
How does the Twist-N-Lock battery system work, and is it waterproof?
Yes, the battery packs are fully IP67 waterproof. The Twist-N-Lock enclosure features a dual-phase lock. First, slide the battery module into the casing and click the clip-on latch. Second, rotate the dial knob 90 degrees to align with the lock/padlock symbol, engaging the compression seal to ensure a completely watertight fit.
How do I pair the remote control with the FoilBoost unit?
To pair the remote:
  1. Press and hold both the Power button and the Speed "-" button on the remote for 2 seconds to enter the Bluetooth scanning screen.
  2. Use the "+" and "-" keys to navigate and highlight your specific FoilBoost unit, then press the Trigger to confirm.
  3. For initial/first-time pairing, place the Operation Magnet (located at the bottom of the remote handle) close to the physical pairing contact point on the main unit to verify authorization.
How do I check the battery capacity and read the indicators?
The device contains 4 battery capacity LED indicator lights:
  • Each **steady light** represents 25% of battery capacity.
  • Each **flashing light** represents 12.5% of battery capacity.
  • A full charge is represented by all 4 LEDs being solid blue.
  • The remote control will show a low-battery alert on its LCD dashboard when its own charge falls below 20%.
Does the system shut off automatically if I forget to power it off?
Yes. The FoilBoost system features a dual sleep and power-saving routine. If the Bluetooth connection is lost or inactive for more than 30 minutes, the unit enters sleep mode. If it remains in sleep mode for another 30 minutes, it will automatically shut off completely to conserve battery.
How do I connect the FoilBoost to the Waydoo mobile app?
FoilBoost sets up a local Wi-Fi hotspot for app pairing. Turn on the Wi-Fi connection from the remote or device, then open your smartphone's Wi-Fi menu and connect to the SSID: FP10_CONTROLER-XXXX. Enter the default factory password: 12345678. Once connected, open the Waydoo App to monitor battery cycles, manage settings, or update firmware. (Note: The default fixed IP of the controller is 192.168.4.2).
What are the battery charging parameters and times?
The system charges using a dedicated 55V / 10A fast charger. In parallel mode, the charging hub will fully charge both 216Wh battery cells simultaneously in approximately 150 minutes. When charging, the indicator lights show charging state:
  • Fast Blue Flash: Fast charging (high current, twice per second).
  • Slow Blue Flash: Slow charging (low current, once every 2 seconds).
  • Solid Blue: Fully charged.
How do I care for and maintain the FoilBoost after riding?
Proper post-ride care is essential for extending the life of your FoilBoost, especially after salt-water sessions:
  • Always rinse the entire propulsion unit, clamp, remote, and batteries thoroughly with clean, fresh water.
  • Apply waterproofing grease to the power cable plugs and inspect the sealing O-rings before assembly.
  • Store the components in a cool, dry place out of direct sunlight.
  • Avoid frequent and unnecessary removal/installation of the power cable to protect the sealing and connection points from wear.
What is the official warranty period for the Waydoo FoilBoost?
In North America, the FoilBoost comes with the following limited warranty terms:
  • Propulsion Motor Unit: 1 Year
  • Lithium-ion Batteries: 1 Year or 200 cycles (whichever occurs first)
  • Smart Bluetooth Remote: 1 Year
  • Smart Charging Hub & Charger: 1 Year
  • Propeller & Propeller Guard: 6 Months
*Note: Exclusions apply for damage caused by collisions (e.g. hitting underwater rocks), over-discharge of batteries, or unauthorized modifications.

Frequently Asked Questions

How much is the Waydoo Foilboost? +

The Waydoo Foilboost assist motor retails at $2,980.00. This includes the battery pack, mounting pod, remote, and propulsion motor.

Which hydrofoil masts is Foilboost compatible with? +

The Foilboost is designed with a universal mast adapter block that is compatible with almost all standard aluminum and carbon hydrofoil masts on the market (including Armstrong, Sabfoil, Axis, and F-One).

Technical FAQs & Specifications

What mast profiles are compatible with the Waydoo FoilBoost assist kit?
The FoilBoost is engineered with a highly modular, 3D-adjustable mast bracket that fits over 98% of hydrofoil masts on the market. It securely clamps onto carbon or aluminum masts without slipping, protecting the mast surface.
What is the benefit of the Front-Pull (Front-Drive) mounting position?
The unique Front-Pull position pulls the board rather than pushing it. This places the motor ahead of the mast, reducing water turbulence over your front wing. This increases overall lift efficiency and provides self-balancing takeoff stability.
How does the Twist-N-Lock battery system work, and is it waterproof?
Yes! The battery has an IP67 waterproof rating. The Twist-N-Lock system secures the battery in a dual-phase lock: first, slide the battery into place and click the clip-on latch; second, rotate the dial knob 90° to the padlock symbol to engage the compression waterproof seal.
Why does the FoilBoost utilize an extended front antenna?
Radio waves do not travel well through water or carbon fiber boards. The FoilBoost features an extended receiver antenna that routes to the nose of your board. This keeps the receiver out of the water shielding path, ensuring zero signal dropouts.
Can I charge both batteries simultaneously with the Smart Charging Hub?
Yes! The FoilBoost Smart Charging Hub is designed for parallel charging. It charges both 216Wh batteries simultaneously in approximately 150 minutes, rather than charging them sequentially, saving you hours of prep time.
What is the Waydoo-Exclusive Propeller Guard, and can it be removed?
For safety, the FoilBoost comes with an integrated, high-rigidity propeller shroud. It protects you from the spinning blades during launch, water falls, or close carving maneuvers. For safety and liability reasons, the propeller guard should never be removed.
// BROADCAST

WAYDOO OFFICIAL // FOILBOOST INSTALLATION GUIDE

Get the most out of your Waydoo FoilBoost assist kit with this official step-by-step installation tutorial. Learn how simple it is to mount the modular motor unit to your mast, install the battery, and complete the basic setup for big fun on the water.

// KEY VIDEO SECTIONS & HIGHLIGHTS
  • [>>] Modular Motor Mounting
  • [>>] Dual Battery Installation
  • [>>] Tool-free Mast Connection
  • [>>] Wireless Remote Pairing
