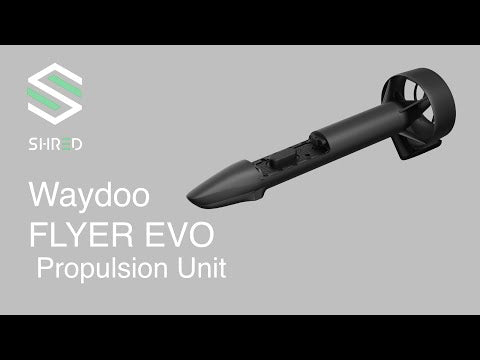

Expert Breakdown: EVO Propulsion and Power

Waydoo Flyer EVO Propulsion & Motor Options: A Technical Breakdown

Modularity and application-specific engineering define the Waydoo Flyer EVO architecture. Tailoring an eFoil setup to your riding style requires a clear understanding of power output, motor footprint, and physical weight distribution. The Flyer EVO series introduces two distinct motor power options and three modular propulsion methods, allowing riders to fine-tune their rig for maximum low-end torque, high-speed efficiency, or aggressive carving agility.

6 kW vs. 4 kW Motor Options: Specs, Weight, and Hydrodynamics

Both motor options feature an integrated fuselage housing—an architectural design inherited and refined from the Waydoo Flyer ONE+ platform. However, the physical dimensions and stator sizes produce distinct dynamic trade-offs on the water.

• 6 kW Motor Assembly:
  • Performance Profile: Engineered for maximum instantaneous torque and higher power overhead. It delivers exceptional low-end hole-shot power while maintaining high electrical efficiency.
  • Physical Footprint: Increases overall fuselage length by 2 inches and adds approximately 2.0 to 2.5 lbs of dead weight compared to the 4 kW unit.
  • Riding Dynamics: The extended fuselage leverage slightly dampens roll and yaw initiation, introducing a minor trade-off in tight pivot carving in exchange for increased tracking stability and superior weight-carrying capacity.
  • Ideal For: Heavier riders, beginners, intermediates needing quick takeoff power, or users operating larger foil wings where power delivery takes priority over absolute maneuverability.
• 4 kW Motor Assembly:
  • Performance Profile: Shares output characteristics similar to the proven Waydoo Flyer ONE+ drive system, delivering balanced thrust for standard rider weight classes.
  • Physical Footprint: 2 inches shorter in total fuselage length and 2.0 to 2.5 lbs lighter than the 6 kW alternative.
  • Riding Dynamics: The shorter fuselage significantly reduces rotational inertia. This shortened leverage point allows the board to pivot and roll into turns with much less foot pressure, offering immediate pitch and yaw feedback.
  • Ideal For: Intermediate to advanced riders prioritizing max maneuverability, tight carving arcs, dynamic wave riding, and a lighter overall rig.

Fuselage Connection Architecture

Regardless of whether you choose the 4 kW or 6 kW motor size, both fuselages utilize Waydoo's standardized connection interface. The modular mounting system separates high-current electrical transmission from digital signal communication:

• Isolated Power Terminals: Discrete positive and negative power connections ensure minimal voltage drop and secure current transfer.
• Dedicated Data Harness: High-integrity signal lines route throttle response and telemetry directly to the controller hub.
• Standardized Mechanical Alignment: Both fuselages lock securely onto the mast with identical connection hardware, allowing seamless swapping between setups.

Three Modular Propulsion Configurations

The Waydoo Flyer EVO features broad backwards and cross-compatibility. All three propulsion systems fit directly onto either the 4 kW or 6 kW fuselage options without needing adapters:

• Standard Propeller with Guard: Features a classic open-blade prop surrounded by a high-impact protective cage. It balances reliable thrust with essential safety for multi-user setups and training.
• Jet Propulsion Unit: A fully enclosed impeller mechanism that completely shields the rotating element. It provides linear throttle control, smooth power curves, and enhanced safety in shallow or high-density water.
• Folding Propeller System: Built specifically for unpowered swell riding and wake carving. When you cut the throttle, the blades fold flush against the hub via hydrodynamic drag, allowing you to glide freely on wave energy without motor drag.

Whether you need a heavy-duty 6 kW workhorse for smooth cruising or a nimble 4 kW system paired with a folding prop for surfing swells, the Waydoo Flyer EVO ecosystem offers full modular customization. For help selecting the right fuselage and propulsion package for your rider profile, reach out to the technical team at Shred Services.
