Expert Breakdown: Evo Overview

The Modular Architecture of the Waydoo Flyer EVO

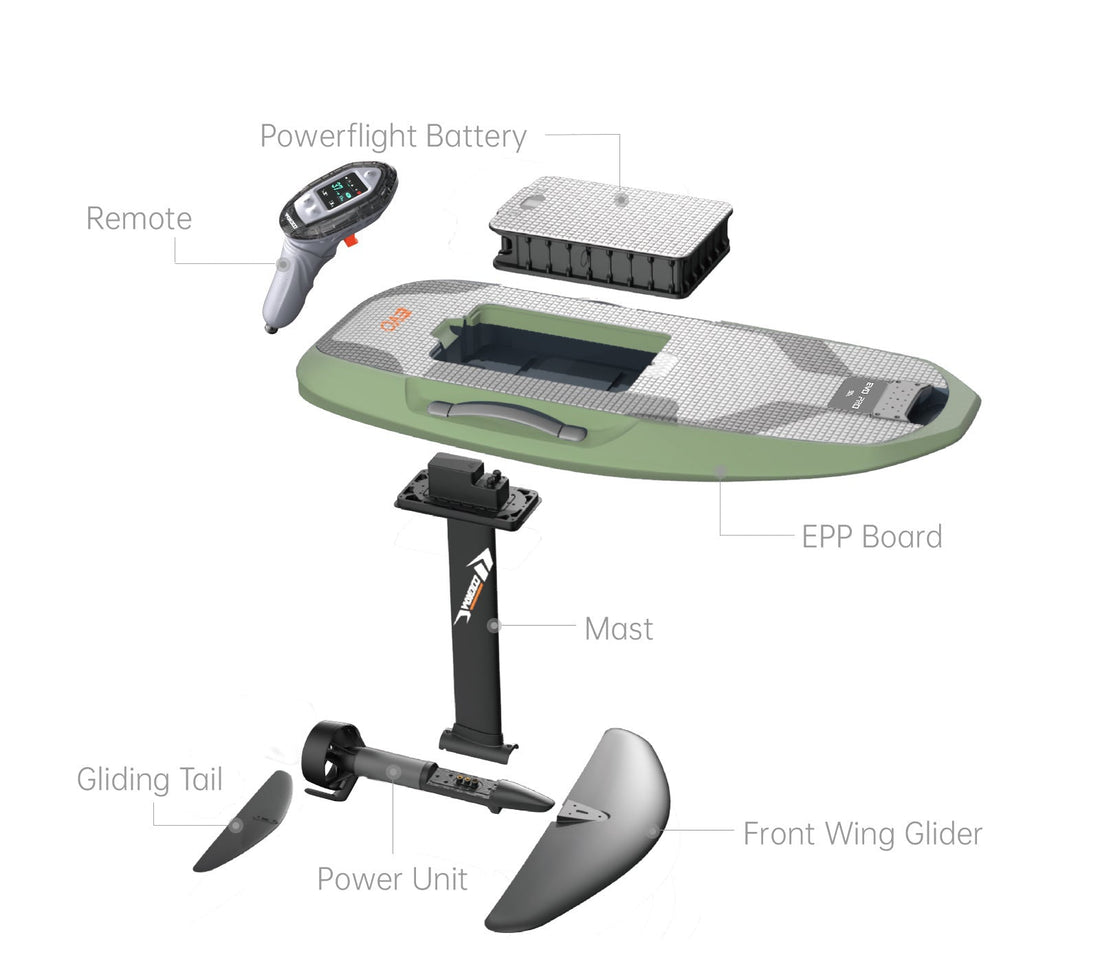

Unboxing the Waydoo Flyer EVO reveals a fully modular eFoil ecosystem designed for custom configuration, straightforward transport, and isolated component maintenance. Unlike integrated single-piece power assemblies, the Flyer EVO separates the mast, motor fuselage, and wing structures, allowing riders to swap components based on skill level, riding style, and hydrodynamic demands.

When selecting your setup, the system offers several customizable physical properties across boards, masts, and power options:

• Board Options: Volume configurations include a 75L Carbon model, a 90L Expanded Polypropylene (EPP) option, and a 130L high-buoyancy board tailored for early stability and progression.
• Mast Lengths and Materials: Modular mast choices feature a short 65cm aluminum mast (ideal for shallow water and initial learning), a 75cm carbon fiber mast, and an extended 85cm aluminum mast for deeper chop clearance and aggressive leaning angles.
• High-Capacity Power Pack: The system utilizes Waydoo's 2300Wh lithium battery pack—one of the largest energy capacities in the eFoil industry—housed in a heavy-duty casing with an integrated carry handle.

Remote Controller Enhancements: Ergonomics and Magnetic Switching

The upgraded Waydoo Flyer EVO remote control introduces key structural refinements to throttle delivery and physical interface management:

• Extended Trigger Throw: A longer throttle throw offers finer power modulation and precise control over motor RPM, reducing sudden torque spikes during pop-ups.
• Integrated Power Magnet: Rather than utilizing a dangling tether magnet (as seen on the legacy Flyer ONE and Flyer ONE+), the EVO embeds the activation magnet directly into the base of the remote body. This adds mechanical grip while eliminating loose hardware flapping in high winds or spray.
• System Control: The integrated magnet interfaces directly with the battery telemetry display to activate board power and switch internal battery features.

Assembling the Power Unit: Mast-to-Fuselage Mechanics

A major technical feature of the Flyer EVO over previous generations like the Flyer ONE+ is the mechanical separation between the mast and the fuselage. This modular connection allows riders to interchange motor units or mast lengths without replacing the entire propulsion assembly.

To execute a secure, corrosion-resistant connection between the masthead and fuselage:

• Port Alignment and Lubrication: Align the electronic connector ports between the mast base and fuselage. Apply marine-grade silicone lubricant around the seals. This repels salt water, prevents mechanical seizure, and ensures a watertight electrical connection. Always adhere to the core rule of eFoil maintenance: keep all interior electrical contacts dry, cool, and clean.
• The Seating Technique: Push the mast into the fuselage recess using a light wiggling motion to seat the internal connectors without damaging pins.
• Fastening Protocol: Thread the smaller stainless steel Allen screws by hand for the first few rotations while wiggling the masthead. If you feel torque resistance immediately, back the screw out—do not force it, as cross-threading will permanently damage the aluminum housing.
• Flush Fitment: Tighten hardware until the mast plate sits completely flush against the fuselage body. A raised seam indicates improper seating or trapped debris.
• Integrated LED Lighting: The enlarged masthead housing incorporates downward-facing LED lights along its underside, providing board underlighting for enhanced low-light visibility.

Battery Bay Assembly: Compression Springs and 3-Point Latching

The Flyer EVO redesign addresses mechanical pain points regarding battery removal and deck rigidity. Inserting and securing the 2300Wh power pack involves specific mechanical features designed for safety and structural stiffness.

• Spring-Loaded Assist: Internal compression springs inside the EPP battery bay push up against the bottom of the battery casing. This neutralizes mechanical suction and offsets the initial weight when removing the battery pack from the board.
• 3-Point Mechanical Lock System: Previous generations relied on plastic retention screws turned 180°. The Flyer EVO replaces these with a heavy-duty three-point connection: two recessed, quarter-turn metallic twist latches paired with a primary snapping latch mechanism.
• Structural Rigidity: Locking these three recessed latches pulls the battery down flush into the board deck, improving direct force transfer and eliminating flex under heavy turning loads. A protective faceplate snaps down over the third latch point to shield it from debris and impact.
• On-Board Telemetry and Error Codes: The integrated battery LCD screen monitors physical pin engagement. Uneven latching (such as securing one quarter-turn lock without engaging the opposite side) triggers an installation error code on the LCD display, preventing throttle activation until seating is corrected.

Board Sequencing & Power Unit Mounting: Practitioner Insights

While standard manual sequences suggest attaching the power unit to the board before installing the battery, practical field testing yields a superior setup method:

• The Battery-First Method: Insert and latch the battery into the top deck while the board rests flat on the ground. This allows you to leverage downward body weight to push down and secure the three latches firmly without stressing the aluminum mast or wing structure.
• Mounting the Power Unit: Flip the board over onto a soft surface once the battery is locked in. Align the power unit mast connector to the receiver cavity on the hull.
• Fastening Order: Insert the larger Allen bolts, starting with the bolt closest to the internal electrical connector first. Wiggle the mast gently as you turn the bolt to ensure the pin connections pull straight together. Tighten until the mast base plate sits flush against the board recess.

Integrated Beach Transport System

Transporting a fully assembled eFoil across sand or concrete can put unnecessary wear on wings and board rails. The Flyer EVO board features direct-mount wheel inserts built into the rear tail plate.

By threading the accessory wheel shafts directly into these structural inserts via high-torque wing screws, the inverted board transforms into a rolling cart. This allows riders to roll the fully assembled rig down to the water's edge without carrying static load or requiring a separate dolly bag.
