Waydoo EVO Lite Package - The Best Value Efoil for Beginners
Product Details
The Waydoo Flyer EVO Lite is the ultimate, most approachable entry point to the world of eFoiling. Designed specifically for beginners, casual weekend cruisers, and riders who prioritize smooth control, stability, and outstanding value over extreme speeds.
Category: Comfort Cruiser

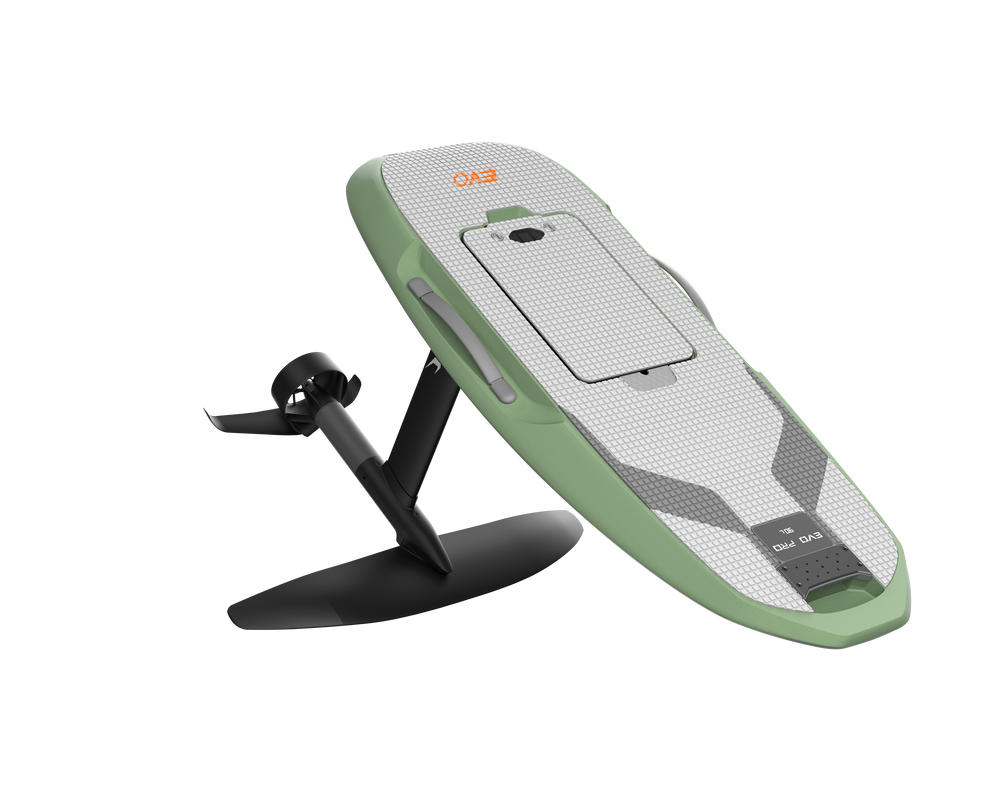

High-Density EPP Board
Constructed from premium, high-density expanded polypropylene (EPP) with a rugged internal structural frame. Virtually ding-proof, absorbs impacts, and is highly resistant to shore scrapes and scratches.
90 LITERS
Board Volume
DING-PROOF
Board Durability
The Modular EVO Ecosystem
Like all models in the Flyer EVO family, the Lite is completely modular. As your riding skills progress over time, you can upgrade any of your parts—including switching to larger wings, longer masts, or higher-performance propulsion units—without ever needing to purchase a new board!

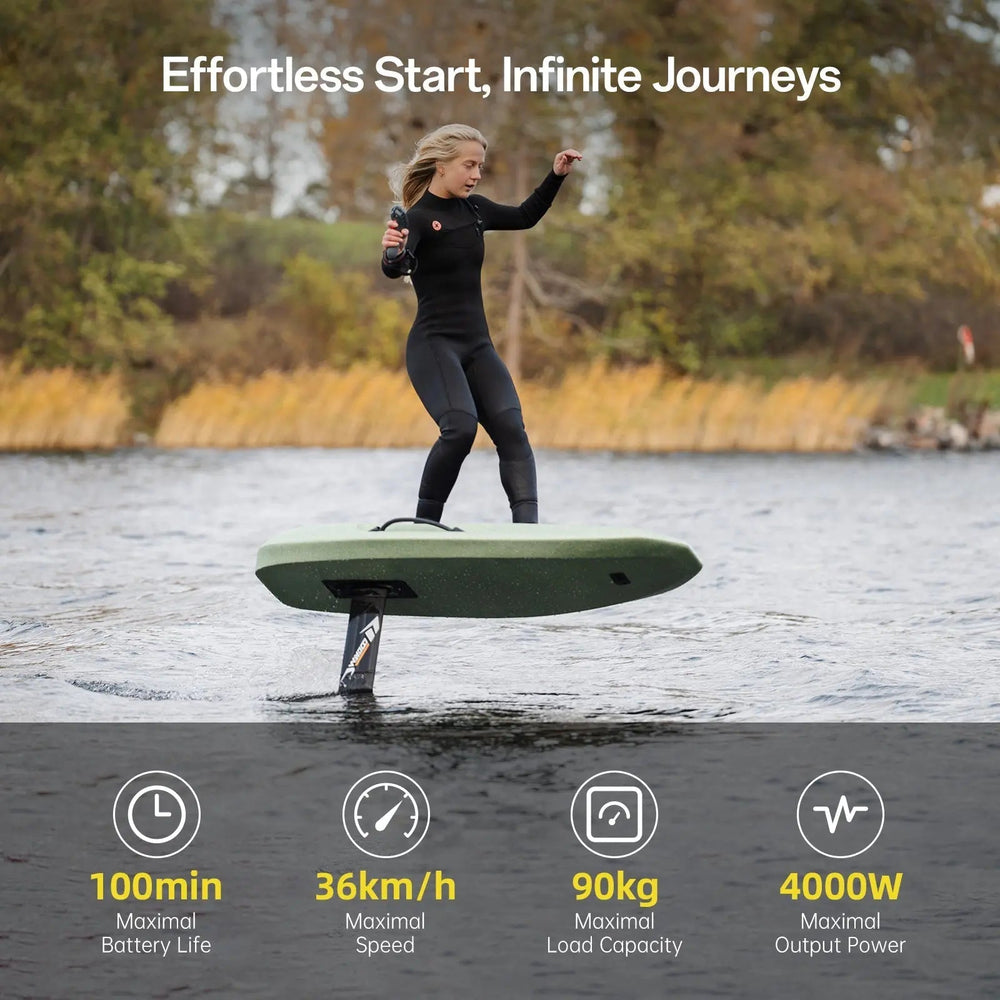

LITE SPECIFICATIONS
22.4 MPH
Top Speed
4000W
Power Output
100 MIN
Battery Life
198 LBS
Weight Limit
Component Specifications
Board Material
Ding-proof EPP Core
Front Wing
Fiberglass Glide 1500
Stabilizer Wing
Gliding Tail 320
Mast Type
65cm Aluminum Mast
Flight Software
Direct Throttle Control
Waydoo Flyer EVO Quick-Start & Assembly Guide
Assembly & Torque Specifications
- Mast to Board / Propulsion: 2x M6x20 Bolts (5-10 N.m)
- Front Wing Mount: 3x M6x35 Bolts (5-10 N.m)
- Stabilizer Wing Mount: 2x M6x20 Bolts (5-10 N.m)
- Hex Key Storage: Hidden inside the rubber plug in the board's battery compartment compartment!
Flight Control & Remote Safety
- Trigger Safety Autolock: Remote throttle automatically locks if left idle for 7 seconds. Press & hold "-" button for 1 second to unlock.
- Smart Flight Assist (Plus Models): Uses bottom altimeter sensors to auto-stabilize. Toggle in remote menu to select Low, Medium, or High altitudes.
- LCD Dashboard Info: Displays real-time speed, remote/battery charge, GPS strength, and inclination angle (tilt degree).
Smart Powerflight Battery Care
- Power On/Off: Tap once with the magnetic wrist-strap key for 3 seconds. Keep magnet close (within 1cm) until progress bar completes.
- Rotary Lock Safety: Turn rotary locks 90° clockwise. Operating the battery un-locked causes seawater entry, electrical corrosion, and terminal damage.
- Storage & Temperature: For storage >1 month, maintain at 40-60% charge. Charging will not start below 10°C (50°F) or above 45°C (113°F).
Post-Ride Maintenance & Care
- ESC Cooling Cabin: Rinse with clean fresh water after each use to prevent salt or shellfish corrosion.
- DC Ports & Terminals: Check monthly. Use an alcohol cotton swab to gently clean positive and negative terminals to prevent oxidation.
- Ocean Rinsing: Clean all components with fresh water for 1 minute post-ride. Store in dry, cool conditions away from direct sunlight.
Customer Reviews
EVO Modular Ecosystem Matrix
The Flyer EVO series features a 100% modular architecture. Every board volume, mast length, wing shape, and battery unit is completely interchangeable. Customize your ride profile, mix and match components, and upgrade your system seamlessly as your skills progress.
| Ecosystem Module | Specs & Options | EVO Compatibility | Target Profile |
|---|---|---|---|
| Board Volumes | Lite (90L EPP) | Pro (90L EPP Reinforced) | Max (130L EPP) | Master (75L Kevlar) | 100% Universal Fit | Match board volume to rider weight, skill level, and launching style. |
| Hydrofoil Masts | 27" (68cm) Alloy | 31" (80cm) Alloy or Carbon | 100% Universal Fit | Shorter masts for stability and shallow water; longer masts for banking sharp carvings and swell riding. |
| Front Wings | Glider Series (C1500, C1700, C2000) | Voyager Series (C1500, C1800) | 100% Universal Fit | Glider wings provide highly efficient glide ratios; Voyager wings maximize lift, takeoff ease, and stability. |
| Stabilizer Wings | Standard 370 stabilizer | High-performance stabilizers | 100% Universal Fit | Tuned stabilizer wings balance pitch sensitivity and drag coefficient. |

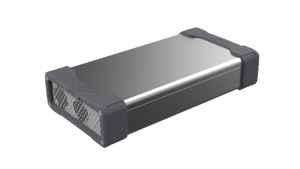

| Power Batteries | Standard Battery (EVO Lite) | Plus Battery (EVO Pro / Max / Master) | 100% Universal Fit | Plus battery drives smart GPS navigation and extended runtimes up to 120 minutes. |
Technical FAQs & Flight Dynamics
How long does the battery last, and what is the recharge cycle?
The standard battery pack (EVO Lite) provides up to 100 minutes of continuous flight duration depending on rider weight and style. The high-capacity Plus battery (EVO Pro Plus / Max Plus / Master Plus) extends runtimes up to 120 minutes of dynamic carving. Standard recharge cycles take approximately 60-90 minutes with our smart fast-charger using standard 110V/220V outlets.
EPP vs Military Kevlar boards – which one is right for me?
EPP (Expanded Polypropylene) is virtually indestructible, absorbs impacts, and is completely ding-proof, making it highly recommended for beginners, schools, dynamic launching points, and shared family cruising. Authentic military-grade Kevlar composite is built for professional racers and carve enthusiasts; it delivers maximum rigidity, zero-flex response, and ultra-lightweight physics that translate rider inputs to the mast with absolute fidelity.
Is the Flyer EVO system completely modular? Can I upgrade parts later?
Yes, 100%! The Waydoo Flyer EVO series is engineered with a unified modular mount. Every board profile, wing configuration, mast length, and stabilizer shape is interchangeable. As your skills advance over time, you can swap to longer aerospace masts, larger/smaller wings, or high-rigidity carbon/Kevlar components without ever buying a new board unit.
Does my Flyer EVO package include the smart flight and GPS features?
Smart flight assistance, GPS tracking, balance sensors, and active geo-fencing are exclusive to the "Plus" series packages (Pro Plus, Max Plus, and Master Plus). These units feature an integrated flight controller inside the board linked with Waydoo's smart flight software to protect riders and track dynamic stats via our smartphone app.
What should I do if my remote throttle trigger fails to initialize or shows an error on startup?
On startup, the remote performs an automatic calibration to establish the 'zero throttle' position. If you are holding the remote trigger down while powering it on, it will fail to initialize or restrict your speed range. To resolve this, simply release the trigger and restart the remote, or long-press the '+' button to enter the trigger throttle calibration menu to reset your trigger range.
How do I safely power on the eFoil, and what is the mandatory battery lock protocol?
To power on, hover your magnetic wrist-strap key close to the battery power button (within 1cm) for 3 seconds. Before launching, you must turn the two rotary locks 90° clockwise to secure the battery. Running the board unlocked seeps seawater into the plug well, causing galvanic corrosion and severe plug burns which void the warranty.
Configuration Summary

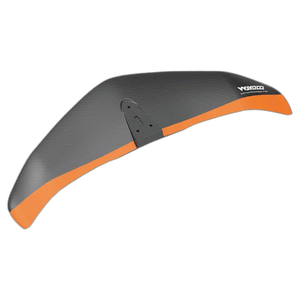

EVO Front Wing (Wing)
Voyager G1100
Flyer EVO Mast (Length)
27 Aluminum

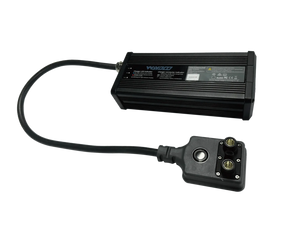

EVO Powerflight Charger (Choose a Version)
600w
Configured Total
$
4899.00
// BROADCAST
WAYDOO OFFICIAL // FLYER EVO ASSEMBLY & OPERATION
Official step-by-step setup and assembly tutorial for the Waydoo Flyer EVO eFoil series. Learn how to securely mount the mast, align the wings, lock the Powerflight battery, and connect the board.
// KEY VIDEO SECTIONS & HIGHLIGHTS
- [>>] Mast-to-Board Rigging
- [>>] Stabilizer & Front Wing Tuning
- [>>] Powerflight Battery Clicking
- [>>] Smart Board Connection
