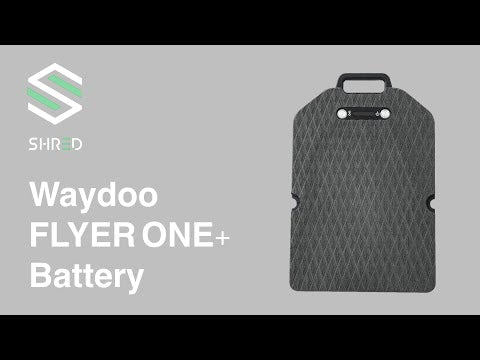

Expert Breakdown: Waydoo Flyer One+ Battery

Technical Overview: Waydoo Flyer ONE & ONE+ Battery Architecture

The core power unit driving the Waydoo Flyer ONE and Waydoo Flyer ONE+ eFoils is a high-output, 6,000-watt lithium-ion power pack built specifically to handle demanding marine environments. Designed with an IP68 waterproof rating, the enclosure is completely sealed against continuous submersion, salt corrosion, and particulate ingress.

Key baseline performance metrics for this battery unit include:

• Maximum Output: 6,000 Watts
• Waterproof Rating: IP68 (fully sealed)
• Charge Duration: Approximately 2 hours from flat to full capacity using standard charging infrastructure
• Operational Runtime: Up to 2 hours of ride time (dependent on rider weight, foil choice, and throttle management)

Waydoo utilizes an inline update methodology across their production runs. Because the battery geometry remains consistent between the original Flyer ONE and the updated Flyer ONE+, these packs are cross-compatible, allowing riders to utilize newer hardware iterations on earlier deck platforms.

Hardware Evolution: Sealed Magnet Key System vs. Physical Buttons

One of the significant engineering updates in recent battery iterations is the replacement of traditional push-buttons with a fully sealed, magnetic key interface. In saltwater action sports, mechanical push-buttons present a distinct point of failure: sand, salt crystals, and debris inevitably work their way beneath rubber boots and mechanical switches, causing sticking or internal seal degradation.

To eliminate these mechanical failure points, the updated Waydoo Flyer ONE+ battery utilizes an internal reed switch activated by an external magnetic key.

• Physical Interface: The top housing feature is entirely solid with zero moving parts, eliminating water pathway risks.
• The Magnetic Key: Each battery ships with a dual-sided key marked with "A" and "B" sides. Functionally, both sides carry identical magnetic polarities and perform identically during operation.
• Switch Operation: Short and long presses are replicated by brief or sustained magnetic taps over the battery sensor node. A short tap triggers the system check, while a sustained hold initiates power delivery and remote pairing sequences.

State of Charge (SOC) Monitoring: On-Battery LEDs vs. Wireless Telemetry

Managing power on an eFoil requires accurate capacity tracking both on land and while underway. The Waydoo battery system provides two distinct layers of State of Charge (SOC) feedback:

1. Hardware Display (Stand-Alone Check)
When the battery is disconnected from the deck, performing a short tap with the magnetic key over the activation node illuminates an integrated 5-light LED display. Each illuminated LED bar represents roughly 20% of total remaining capacity. For example, two illuminated bars indicate approximately 40% SOC. This serves as a fast, reliable pre-flight check before inserting the battery into the hull.

2. Paired Telemetry (Precision Reading)
Because LED increments are grouped in 20% blocks, riders seeking precise cell voltage metrics should boot the board and pair it with the hand controller. The remote interface decodes direct telemetry from the battery management system (BMS) to display real-time percentage readouts on the screen.

Seating & Securing: Step-by-Step Installation Protocol

Improper seating of an eFoil battery can lead to unseated electrical contacts or structural movement within the compartment during high-G turns. Follow this procedure to secure the battery into the deck cavity:

• Placement: Lower the battery straight down into the engineered battery well, ensuring no sand or foreign objects are resting on the lower pin connectors or sealing surfaces.
• Latch Engagement: Locate the twin locking tabs positioned on either side of the battery well.
• Rotation: Rotate both tabs 180 degrees clockwise. You will feel a distinct mechanical detent click as the latch cams down, compressing the seal.
• Visual Verification: Fully locked tabs sit perpendicular to the outer line of the battery housing. If a tab is parallel or angled, the mechanism is not fully engaged.
• Latch Assistance: If the latches are stiff or difficult to turn by hand—especially with wet or cold hands—use the key mold integrated directly into the housing of your Waydoo hand controller to gain additional leverage on the locking tabs.
